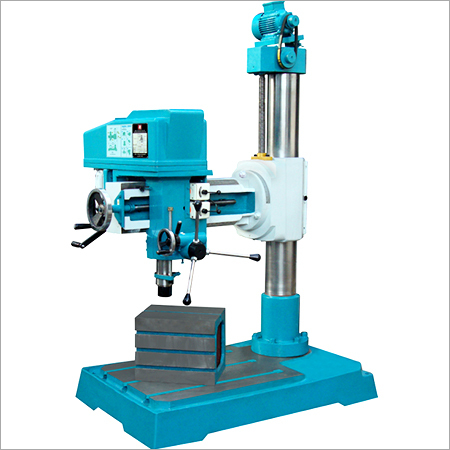

All Geared Fine feed Radial Drilling Machines

All Geared Fine feed Radial Drilling Machines
All Geared Fine feed Radial Drilling Machines
Product Code : R40
Brand Name : PRAKASH
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 140000 INR
Product Description

Owing to technical advancement in the allied market, we have been able to manufacture, export and supply a superior quality array of Radial Drilling Machines. These machines are generally used for drilling operation in different industrial applications. Our offered array of machines is manufactured under the guidance of our highly experienced professionals with the use of supreme quality components and the pioneering techniques. Moreover, esteemed clients can purchase these Radial Drilling Machines at highly competitive rates from us.

Features:

  • High operational fluency
  • Rugged design
  • High durability
  • Low maintenance
  • 40 MM ALL GEARED AUTO FEED Radial Drill Machine


    Description R40AA
    Capacity Drilling In M.S. 40

    Drilling in C.I. 45

    Tapping in M.S. 25

    Rough Boring M.S. 60
    Drilling Head Spindle Hole Taper MT-4

    Spindle Travel 250

    Spindle Speed (RPM x Steps) 58-936 x 9

    Diameter of RAM 78

    Spindle Auto feed Range 0.05 & 0.09 MM/REV
    Working Range Max / Min Distance Spindle Nose to Base 950/250

    Max / Min Distance Spindle Center to Column 900/400

    Max. Drilling Radius 990

    Machine Measurement (L x B x H) 1200 x 780 x 2100

    Diameter Of Column 180

    Work Table 300 x 300 x 385

    Coolant Tank 640 x 290 x 130
    Power Dill-Head Motor 1.5 HP/960 RPM

    Elevating Motor 1HP/1440 RPM

    Lifting Motor V-Belt B-25/B-26
    • It is having gear box of 9 speeds with all 9 gears of NiCr steel and hardened up to 55-60 HRC and tampered.
    • Oil bath gear box and Hardened gears give very long life to the machine.
    • Auto feed gears are also hardened and tampered.
    • All the gears in the machine are supported through good quality bearings and not the bushes.
    • Machine is supplied with complete electrical panel Board and limit switch and 2. Nos. ISI electrical motors.
    • Rotation and easy sliding of gears in bearings give very high reliability.
    • Base plate is provided with in-built coolant tank.
    • Steel RAM and Pinion with 9 DP heavy duty teeth with 250 mm spindle travel enables greater loading capacity.
